Transparent Ticking Quartz Clock Movement Mechanism - 28mm Short Shaft Length

£6.99

In Stock

Free tracked 24 hour delivery on UK orders over £30

Prices include VAT

  • Extra long shaft movement suitable for clock faces up to 16mm thick. The movement shaft has a 18mm gold thread – a 28mm total shaft length – and a 7.6mm gold thread width.
  • Movement dimensions: height 70mm, width 55mm, and depth 16mm (not including shaft length). The movements are compatible with press-fit hands with hole sizes of 3.6mm and 5.5mm.
  • A black rubber washer, a gold metal washer, and a hex nut are all included. Clear fitting instructions can be found under option 23 via our assembly instructions tab.

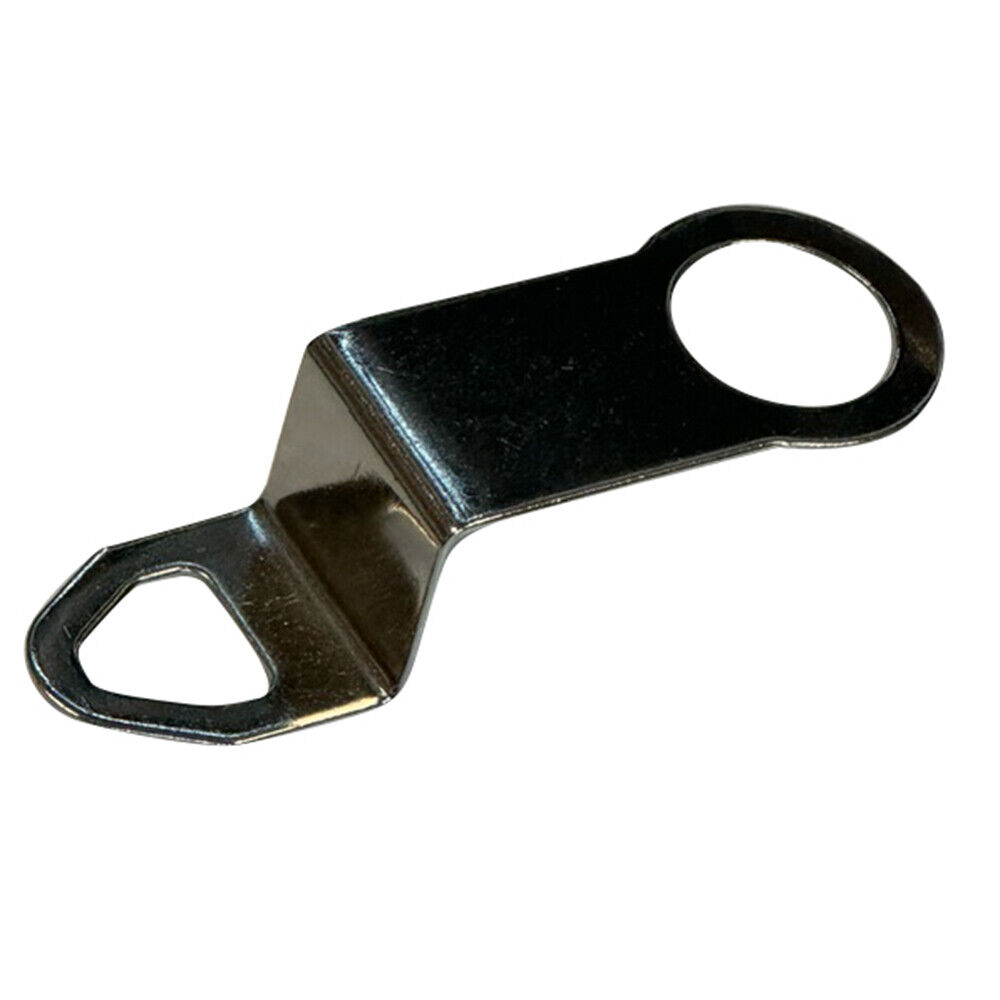

  • Movements are ROHS-approved and take a 1x AA battery. A metal hanging hook is included for optional wall hanging.
  • Movements will drive hands up to 130mm long; for longer hands, a more powerful high-torque movement would be needed.


If you also require hands please add this item to your cart and then order compatible hands separately from the links below.

Chinese shaft clock hands

Qty
+ -

Free tracked 24 hour delivery on UK orders over £30. We are a UK business and all our items ship wordwide from the UK.

Transform your clock-making project with our high-quality extra long shaft clock movement, designed for clock faces up to 16mm thick. Featuring an impressive 28mm total shaft length and an 18mm gold thread, this movement is not just functional but also stylish, thanks to its elegant gold accents.

Measuring 70mm in height, 55mm in width, and 16mm in depth (excluding the shaft), this clock movement is perfectly engineered for precision. It is compatible with press-fit clock hands that have hole sizes of 3.6mm and 5.5mm, offering versatility for your clock design. Each purchase includes essential components such as a black rubber washer, a gold metal washer, and a hex nut for secure installation.

Easy-to-follow fitting instructions are available under option 23 in our assembly instructions tab, simplifying the setup process. This ROHS-approved movement operates on a single AA battery and can elegantly drive clock hands up to 130mm in length. For hands longer than this, consider upgrading to a more powerful high-torque movement. A metal hanging hook is also included for those who wish to display their clock on a wall.

Create a stunning feature piece in your home with this reliable and stylish clock movement!
