Transparent Ticking Quartz Clock Movement Mechanism - 13.5mm Short Shaft Length

£6.99

In Stock

Free tracked 24 hour delivery on UK orders over £30

Prices include VAT

Short shaft movement suitable for clock faces up to 3mm thick. The movement shaft has a 6mm gold thread – a 13.5mm total shaft length – and a 7.6mm gold thread width.
Movement dimensions: height 70mm, width 55mm, and depth 16mm (not including shaft length). The movements are compatible with press-fit hands with hole sizes of 3.6mm and 5.5mm.
A black rubber washer, a gold metal washer, and a hex nut are all included. Clear fitting instructions can be found under option 23 via our assembly instructions tab.

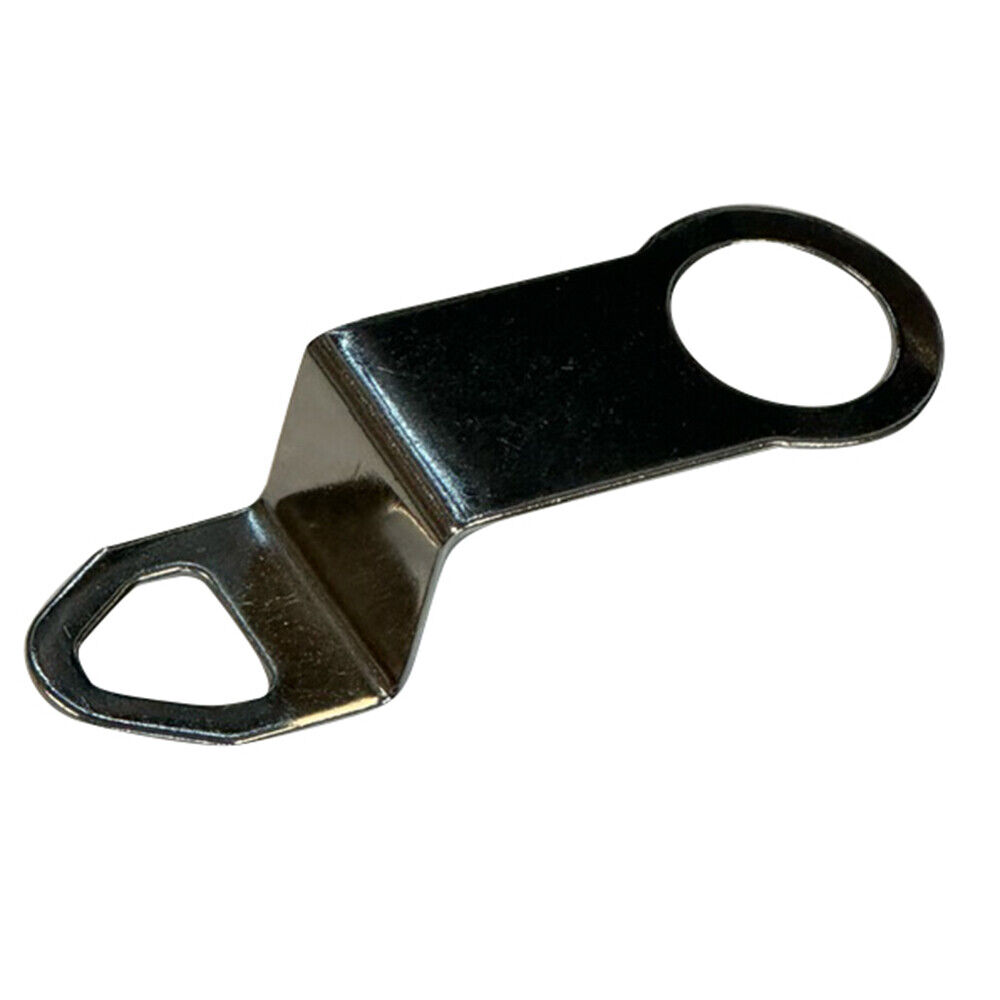

Movements are ROHS-approved and take a 1x AA battery. A metal hanging hook is included for optional wall hanging.
Movements will drive hands up to 130mm long; for longer hands, a more powerful high-torque movement would be needed.

If you also require hands please add this item to your cart and then order compatible hands separately from the links below.

Chinese shaft clock hands

Pack size

Metal Hanger

Qty

+ -

Category:
Transparent Movements & Accessories

Free tracked 24 hour delivery on UK orders over £30. We are a UK business and all our items ship wordwide from the UK.

If you are not completely satisfied, we offer a no fuss returns policy - view our faqs.

Introducing a versatile short shaft clock movement, perfect for crafting and DIY projects. Designed for clock faces up to 3mm thick, this movement features a 6mm gold-threaded shaft with an overall length of 13.5mm. The compact dimensions of 70mm height, 55mm width, and 16mm depth (excluding the shaft) make it an ideal choice for a variety of clock styles.

This clock movement is compatible with press-fit hands with hole sizes of 3.6mm and 5.5mm, allowing for flexibility in design. Each package includes a black rubber washer, a gold metal washer, and a hex nut for secure installation. Easy-to-follow fitting instructions are available under option 23 in our assembly instructions tab, ensuring a hassle-free setup.

Compliant with ROHS standards, this movement requires just one AA battery for operation. Additionally, a metal hanging hook is included, providing the option for wall display. Capable of driving clock hands up to 130mm long, this movement is perfect for your next clock-making endeavor. Elevate your home decor with this reliable short shaft clock movement today!
