Radio Controlled Ticking Quartz Clock Movement Mechanism With Pendulum Drive And Metal Hands – Sheng Bang HD-1668

£16.99

In Stock

Free tracked 24 hour delivery on UK orders over £30

Prices include VAT

  • Fully automatic single-band UK MSF time receiver
  • Automatic synchronisation, time change (summer/winter), fully automatic
  • Compatible pendulum drive unit. Both units can be combined or also used separately. Please see the listing image chart for the various shaft lengths available.
  • Ticking mechanism suitable for clock faces up to 6 mm thick

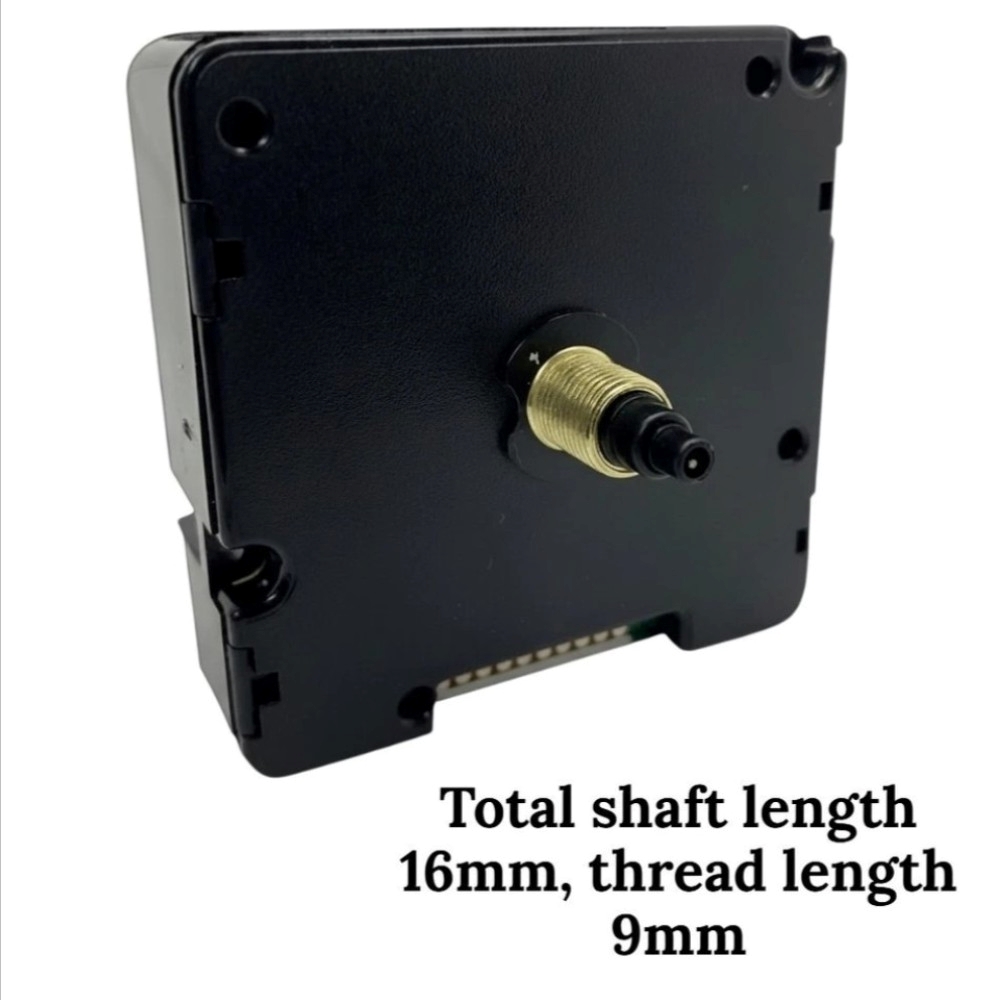

  • Shaft dimensions – gold thread length 9 mm – total shaft length 16 mm
  • Mechanism dimensions: height 72mm, width 56mm, and depth 19mm (not including shaft length).

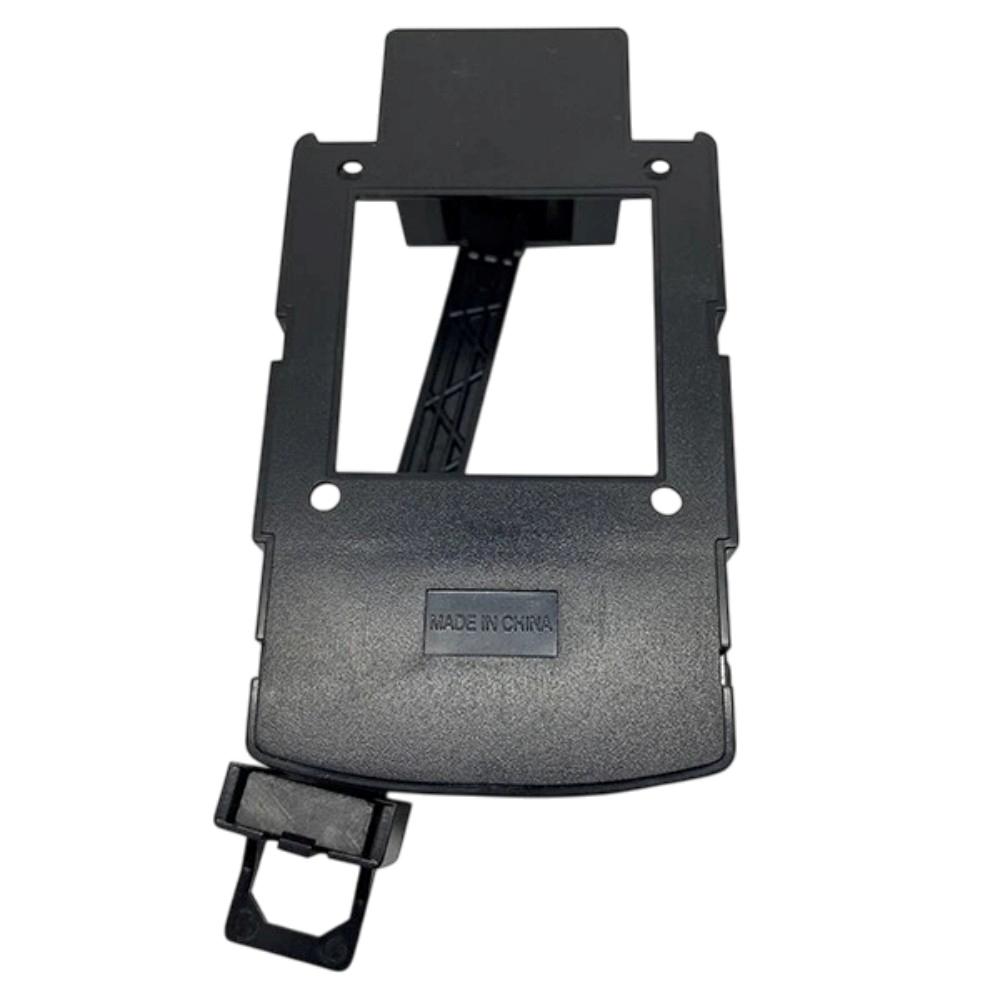

  • Pendulum drive movement dimensions: 140 mm x 58 mm – Depth 30 mm. The drive unit will swing a pendulum up to the weight of 100g.
  • The hand measurements shown are taken from the centre of the minute hand hole to the tip of the minute hand. The hour hands are on average 20% shorter than the minute hands. Please see the listing images for more information on the hand styles and colours available.
  • A black rubber washer, a gold metal washer, and a hex nut are all included. The pendulum drive has a built in hook for wall hanging if required.

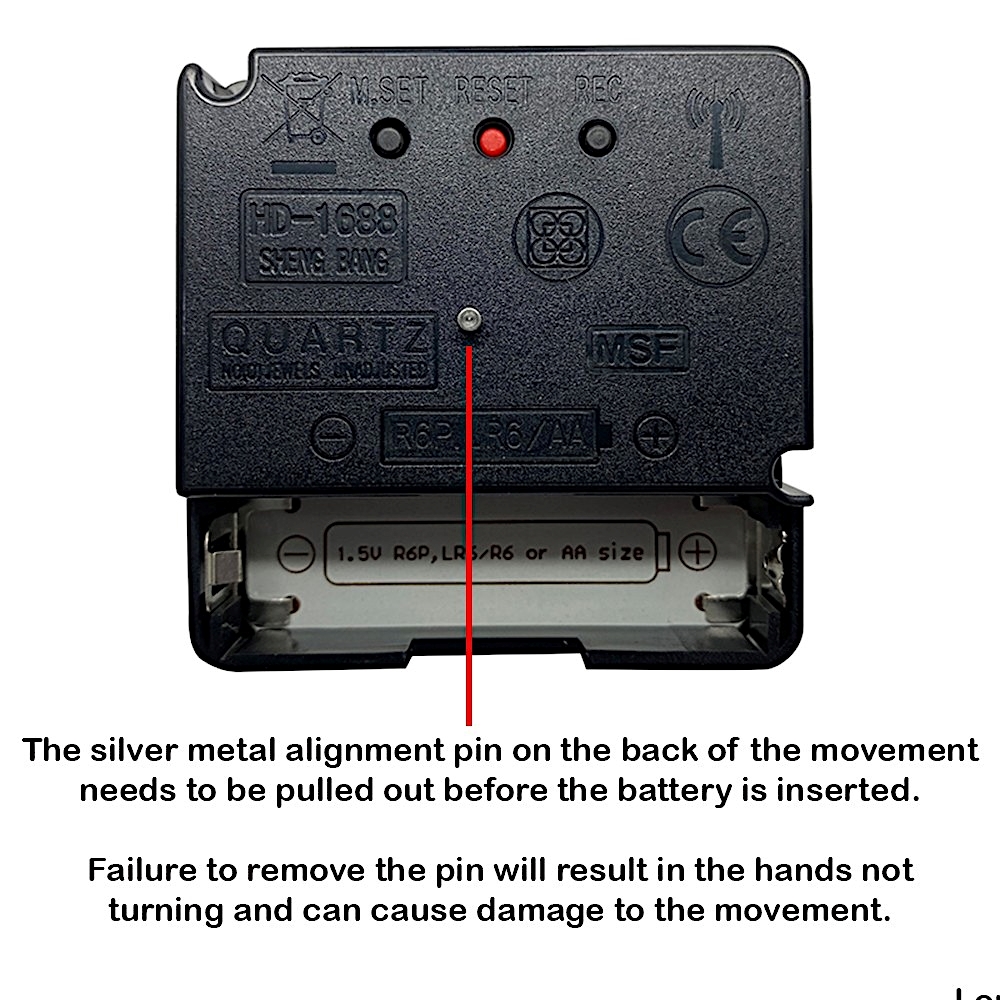

  • The clock mechanism is ROHS-approved and takes 1x AA battery (not included), and the pendulum drive unit takes 1x AA battery (not included).
  • Clear fitting instructions can be found under options 15 & 16 via our assembly instructions tab.


Qty
+ -

Free tracked 24 hour delivery on UK orders over £30. We are a UK business and all our items ship wordwide from the UK.

Enhance your clock-making project with this fully automatic single-band UK MSF time receiver. Designed for seamless synchronization and effortless time adjustments between summer and winter, this time receiver ensures precision for your timepieces. It operates flawlessly with a compatible pendulum drive unit, allowing for versatile use--both together or separately.

This clock mechanism boasts dimensions of 72mm in height, 56mm in width, and 19mm in depth (excluding shaft length), making it a perfect fit for various applications. With a gold thread length of 9mm and a total shaft length of 16mm, it is suitable for clock faces up to 6mm thick. The pendulum drive movement is robust, capable of swinging a pendulum weighing up to 100g, ensuring the perfect combination of style and performance.

Included in your purchase are essential components like a black rubber washer, a gold metal washer, and a hex nut for secure assembly. The mechanism is ROHS-approved, powered by 1x AA battery (not included), with clear fitting instructions available in the assembly tab. Explore various hand styles and colors with the visual chart in the listing images to customize your clock. Elevate your craftsmanship today with this essential clock mechanism!
