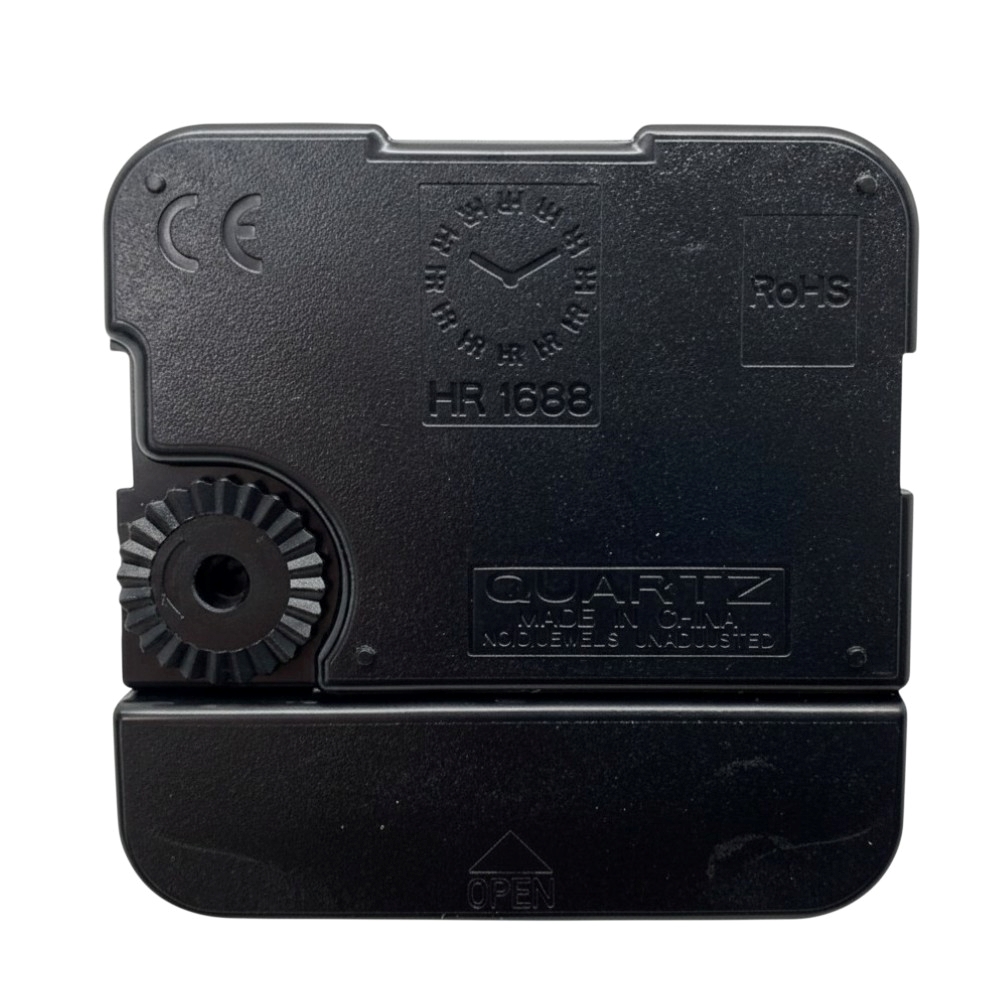

High Torque Quartz Japanese Press Fit Clock Mechanism - Long 19mm Thread

£5.99

In Stock

Free tracked 24 hour delivery on UK orders over £30

Prices include VAT

Long shaft movement with a 19 mm thread length, a total shaft length of 28 mm and a thread width of 7.6 mm
Movement dimensions - height 56 mm - width 56 mm - depth 16 mm (not including shaft)
Standard ticking or silent sweep non-ticking movement
High torque movements, which are indicated by a green setting wheel, are more powerful than standard movements and can drive hands up to 450 mm long.
Suitable for hand sizes 150 mm - 400 mm with a shaft thickness for the hour hand of 5.00 mm + minute hand of 3.1 mm

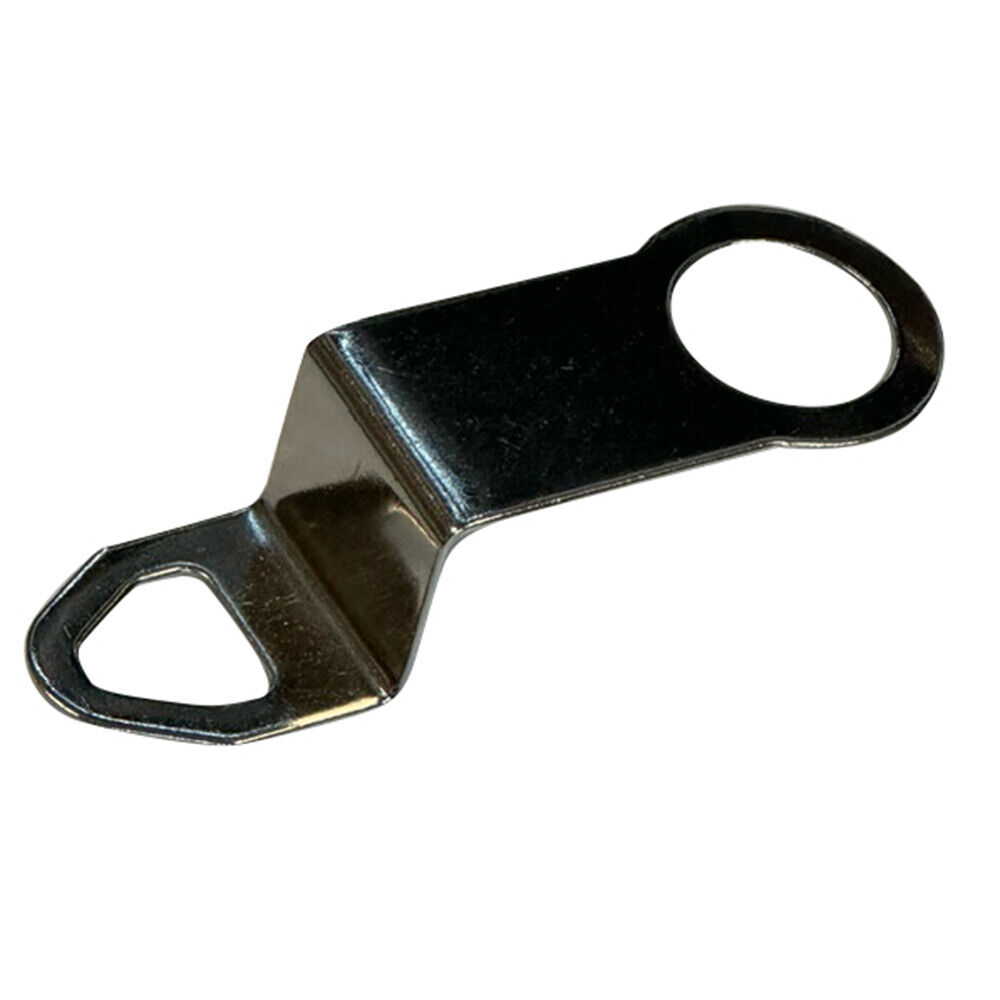

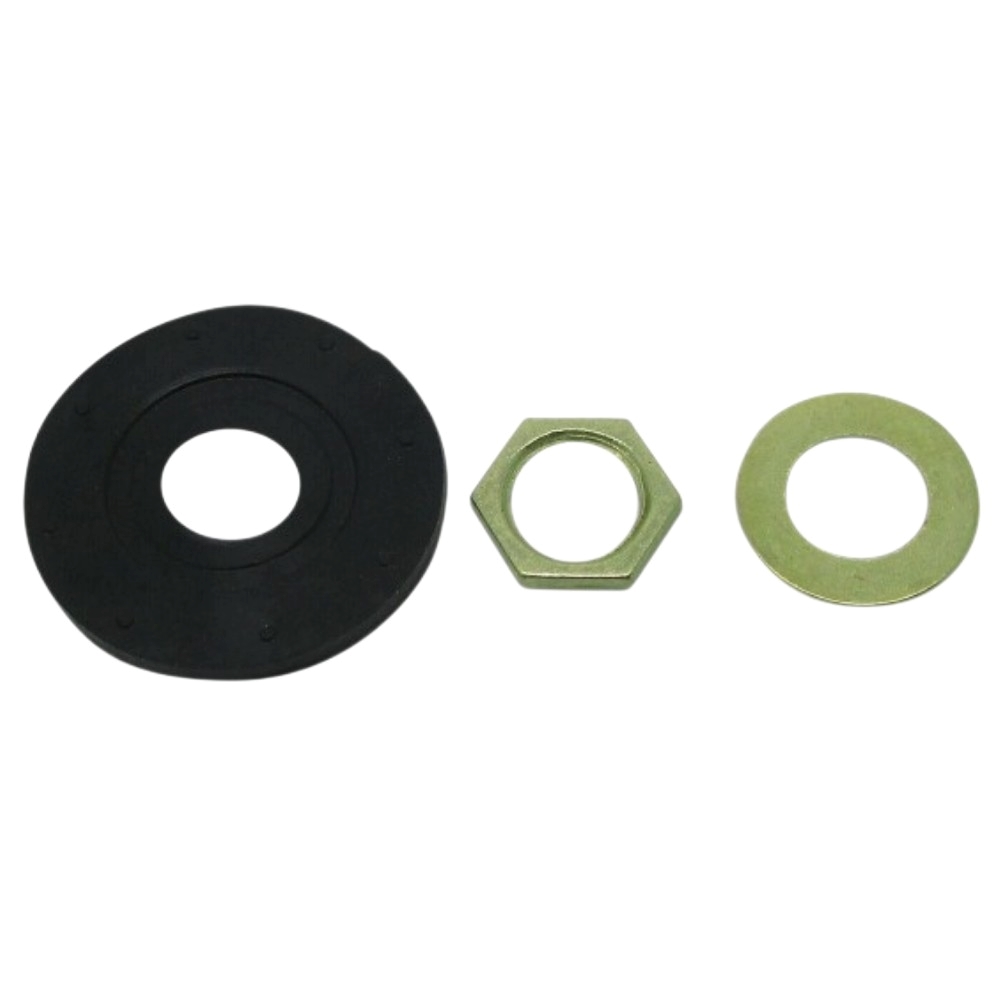

Complete with fittings and battery cover which make these ideal for outdoor clocks
Takes one AA battery (not included), RoHS-approved, fully tested with fitting instructions
Although the gold-threaded movement is used for most orders, the colour of the thread and brand of movement can vary depending on stock availability.

If you also require hands please add this item to your cart and then order compatible hands separately from the links below.

Chinese shaft clock hands

Pack size

Movement Type

Qty

+ -

Category:
High Torque Press Fit Movements For Large Hands

Free tracked 24 hour delivery on UK orders over £30. We are a UK business and all our items ship wordwide from the UK.

If you are not completely satisfied, we offer a no fuss returns policy - view our faqs.

Discover the ultimate solution for your clock building needs with our high-torque long shaft movement, featuring an impressive 19 mm thread length and an overall shaft length of 28 mm. This versatile movement boasts a thread width of 7.6 mm, ensuring it is compatible with a range of clock designs.

Measuring 56 mm in height, 56 mm in width, and 16 mm in depth (excluding the shaft), this clock movement is available in both standard ticking and silent sweep options. The high torque functionality, indicated by the distinctive green setting wheel, allows you to drive hands up to an impressive 450 mm long, making it perfect for larger clock projects.

Designed for hands ranging from 150 mm to 400 mm and requiring a shaft thickness of 5.00 mm for the hour hand and 3.1 mm for the minute hand, this movement comes complete with fittings and a battery cover, ideal for outdoor use. Powered by a single AA battery (not included), this RoHS-approved mechanism has been fully tested for reliability and includes fitting instructions.

Although our standard offering includes a gold-threaded movement, please note that the thread color and brand may vary based on stock availability. Upgrade your clock designs today with this exceptional movement!
