24 Hour Japanese Shaft Clock Movement Mechanism With Hands

£7.49

In Stock

Free tracked 24 hour delivery on UK orders over £30

Prices include VAT

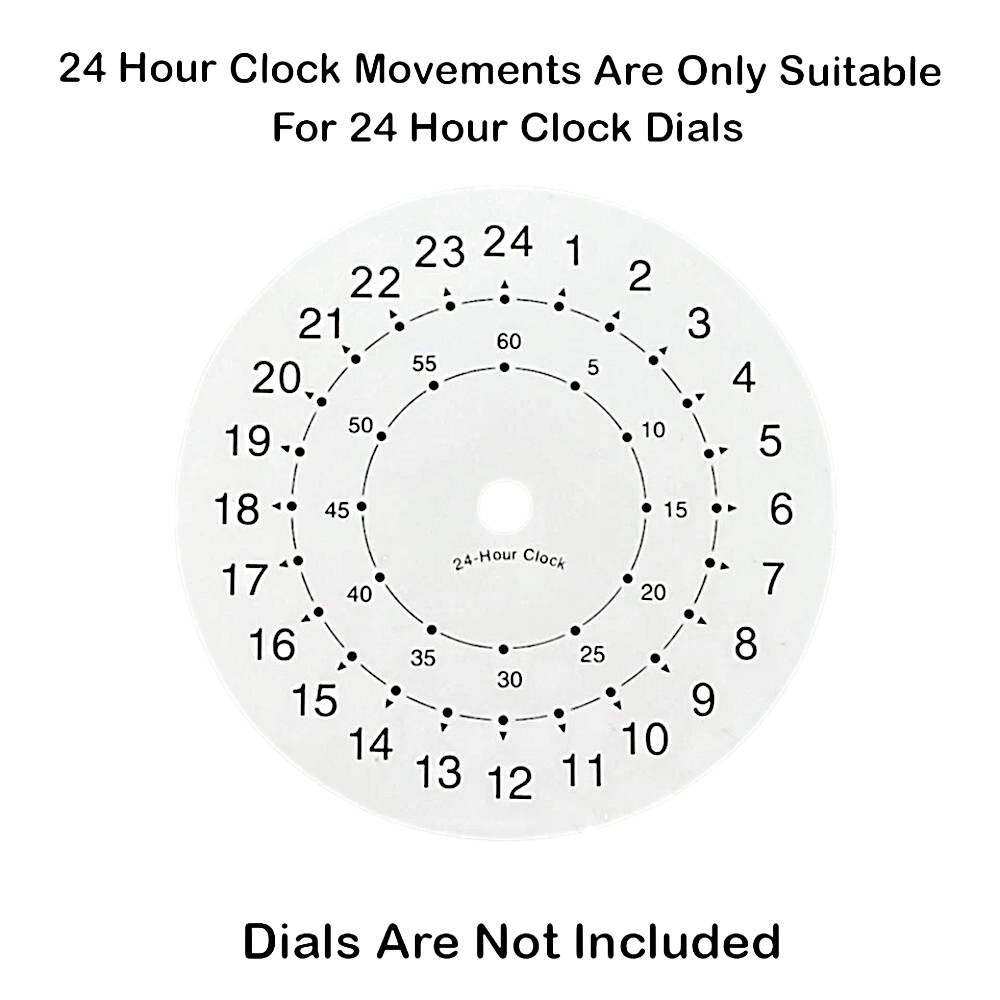

Quartz 24-hour movement suitable for clock faces up to 7mm thick. This movement is only suitable for clocks with a 24-hour dial.
Available in a ticking or silent non-ticking version. Movement thread length: 9.5mm; total shaft length: 17mm; thread width: 7.6mm
Movement thread length: 9.5mm; total shaft length: 17mm; thread width: 7.6mm
Movement dimensions: height 70mm, width 55mm, and depth 16mm (not including shaft length). A black rubber washer, a gold metal washer, and a hex nut are all included. Clear fitting instructions can be found under option 23 via our assembly instructions tab.

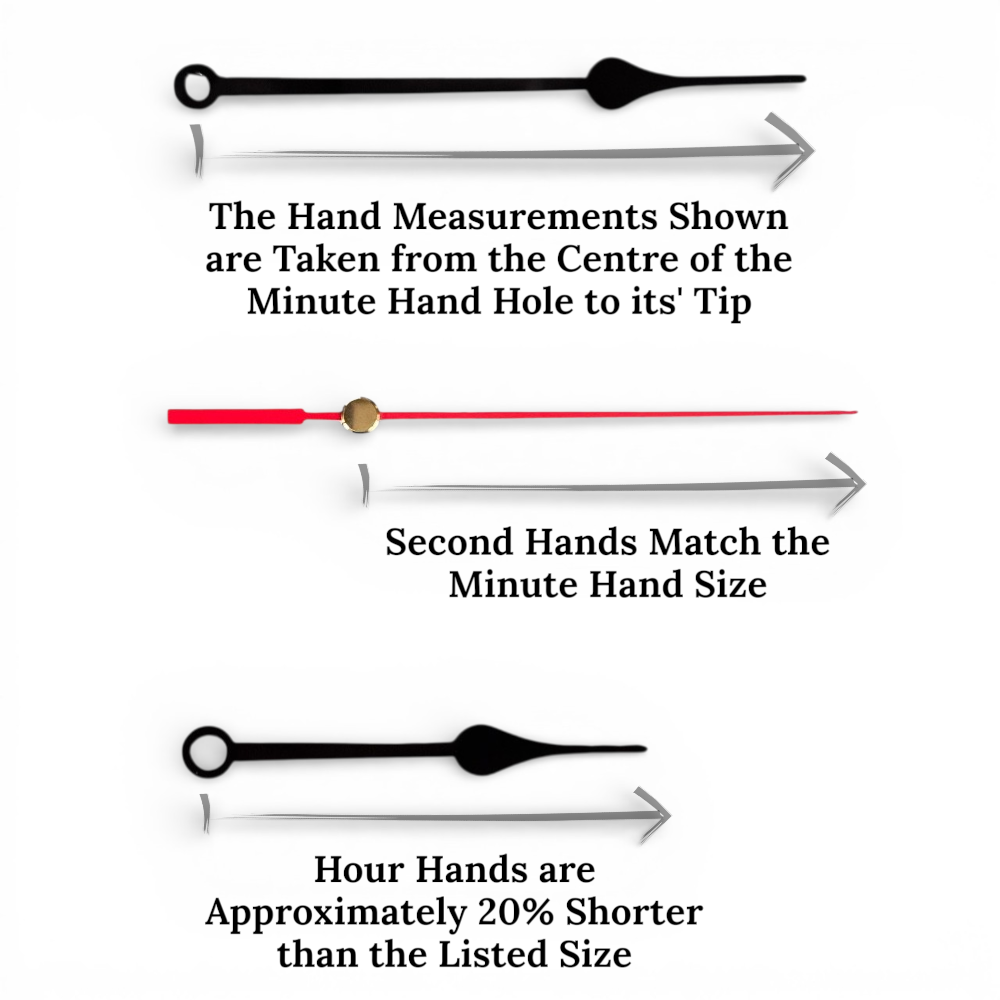

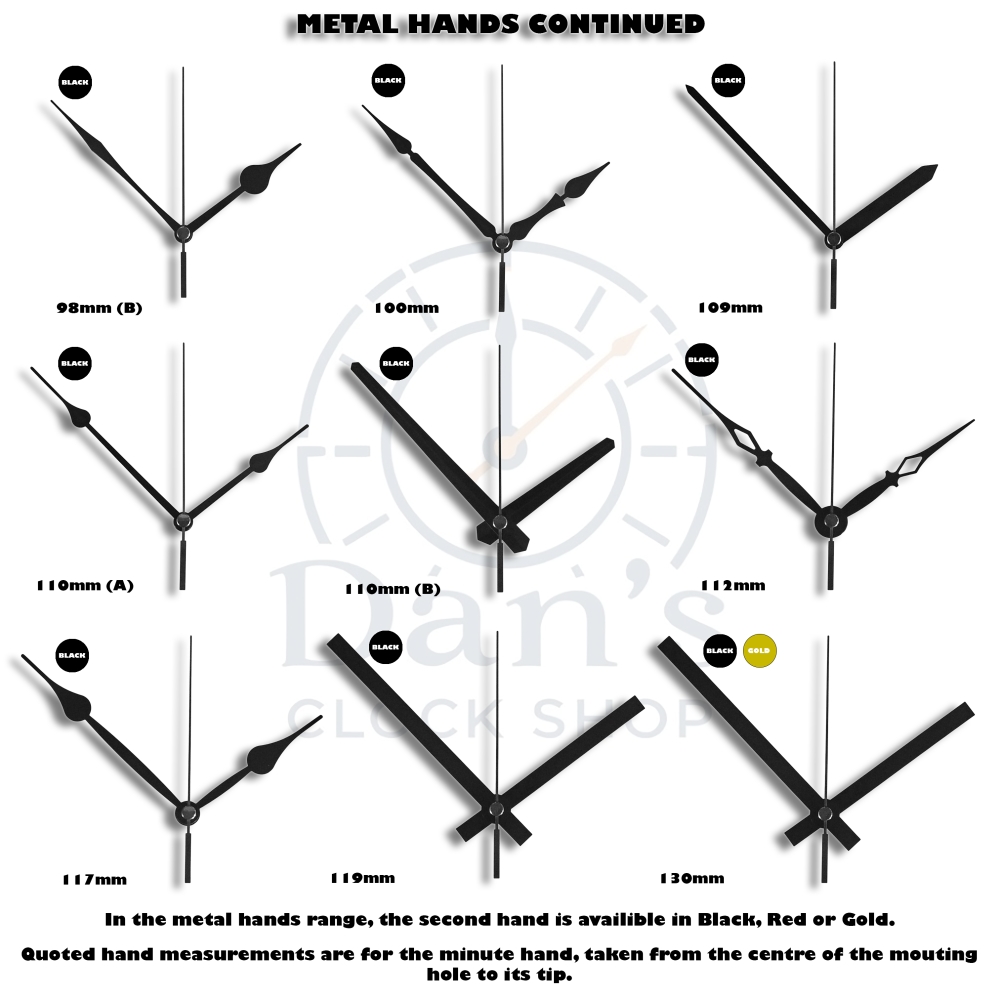

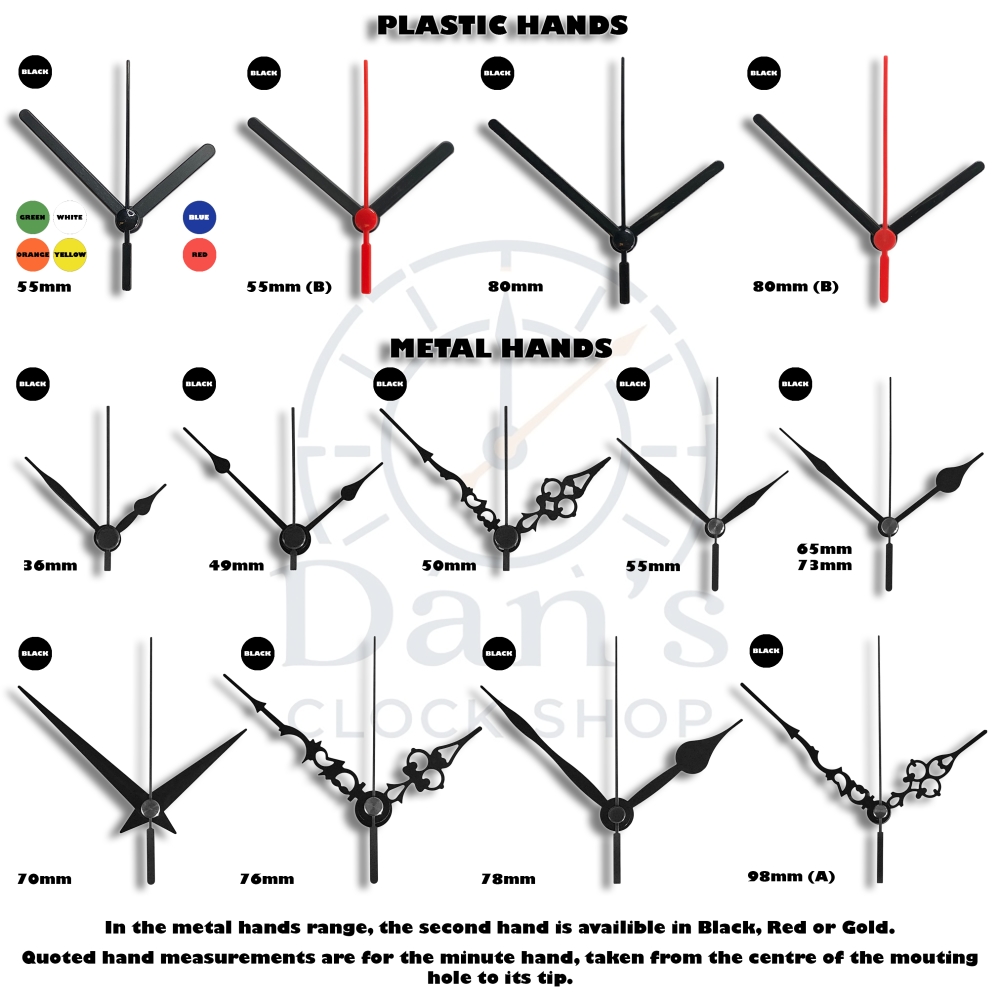

The hand measurements shown are taken from the centre of the minute hand hole to the tip of the minute hand. The hour hands are on average 20% shorter than the minute hands. Please see the listing images for more information on the hand styles and colours available.
Movements are ROHS-approved and take a 1x AA battery. Built-in hanger, which we can remove if you prefer; this may leave a small scratch on the top of the movement.
Although the gold-threaded movement is used for most orders, the colour of the thread and brand of movement can vary depending on stock availability.
Movements will drive hands up to 130mm long; for longer hands, a more powerful high-torque movement would be needed.

Pack size

Movement Type

Hand Size & Colour

Second Hand Colour

Hanging Hook

Qty

+ -

Category:
24 Hour Clock Movements & Accessories

Free tracked 24 hour delivery on UK orders over £30. We are a UK business and all our items ship wordwide from the UK.

If you are not completely satisfied, we offer a no fuss returns policy - view our faqs.

Discover the perfect addition to your clock-making projects with our Quartz 24-Hour Movement, designed for clock faces up to 7mm thick. This reliable movement is ideal for elegant 24-hour clock dials, ensuring timekeeping precision in both ticking and silent non-ticking versions. With dimensions of 70mm in height, 55mm in width, and 16mm in depth (excluding shaft length), it fits seamlessly into a variety of clock designs.

Each Quartz movement features a thread length of 9.5mm and a total shaft length of 17mm, with a thread width of 7.6mm, providing effortless installation. The package includes a black rubber washer, a gold metal washer, and a hex nut, along with clear fitting instructions for a straightforward assembly process. The hand measurements are carefully taken from the center of the minute hand hole to the tip, ensuring a perfect fit with your selected styles and colors.

These ROHS-approved movements require just one AA battery and come with a built-in hanger, which can be removed upon request (though this may leave a small mark). Compatible with hands up to 130mm long, this movement is a dependable choice for any clock enthusiast. Note that variations in thread color and brand may occur based on stock availability.
